Documentation

Good documentation for your dbt models will help downstream consumers discover and understand the datasets you curate for them. dbt provides a way to generate documentation for your dbt project and render it as a website.

Assumed knowledge​

Overview​

dbt provides a way to generate documentation for your dbt project. The documentation for your project includes:

  • Information about your project: including model code, a DAG of your project, any tests you've added to a column, and more.
  • Information about your data warehouse: including column data types, and table sizes. This information is generated by running queries against the information schema.

Importantly, dbt also provides a way to add descriptions to models, columns, sources, and more, to further enhance your documentation.

Adding descriptions to your project​

To add descriptions to your project, use the description: key in the same files where you declare tests, like so:

models/<filename>.yml
version: 2

models:
  - name: events
    description: This table contains clickstream events from the marketing website

    columns:
      - name: event_id
        description: This is a unique identifier for the event
        tests:
          - unique
          - not_null

      - name: user-id
        quote: true
        description: The user who performed the event
        tests:
          - not_null

Generating project documentation​

The default documentation experience in dbt Cloud is dbt Explorer, available on Team or Enterprise plans. Use dbt Explorer to view your project's resources (such as models, tests, and metrics), its metadata, and their lineage to gain a better understanding of its latest production state.

dbt Cloud developer and dbt Core users can use dbt Docs, which generates basic documentation, but doesn't offer the same speed, metadata, or visibility as dbt Explorer.

Generate documentation for your project by following these steps:

  1. Run dbt docs generate — this command tells dbt to compile relevant information about your dbt project and warehouse into manifest.json and catalog.json files, respectively.
  2. Ensure you've created the models with dbt run to view the documentation for all columns, not just those described in your project.
  3. Run dbt docs serve if you're developing locally to use these .json files to populate a local website.

To view a resource, its metadata, and what commands are needed in dbt Explorer, refer to generate metadata for more details.

FAQs​

Are there any example dbt documentation sites?
Do I need to add a YAML entry for column for it to appear in the docs site?
How do I write long-form explanations in my descriptions?
How do I access documentation in dbt Explorer?
Can I document things other than models, like sources, seeds, and snapshots?

Using docs blocks​

Syntax​

To declare a docs block, use the jinja docs tag. Docs blocks can contain arbitrary markdown, but they must be uniquely named. Their names may contain uppercase and lowercase letters (A-Z, a-z), digits (0-9), and underscores (_), but can't start with a digit.

events.md
{% docs table_events %}

This table contains clickstream events from the marketing website.

The events in this table are recorded by Snowplow and piped into the warehouse on an hourly basis. The following pages of the marketing site are tracked:
 - /
 - /about
 - /team
 - /contact-us

{% enddocs %}

In the above example, a docs block named table_events is defined with some descriptive markdown contents. There is nothing significant about the name table_events — docs blocks can be named however you like, as long as the name only contains alphanumeric and underscore characters and does not start with a numeric character.

Placement​

Docs blocks should be placed in files with a .md file extension. By default, dbt will search in all resource paths for docs blocks (i.e. the combined list of model-paths, seed-paths, analysis-paths, macro-paths and snapshot-paths) — you can adjust this behavior using the docs-paths config.

Usage​

To use a docs block, reference it from your schema.yml file with the doc() function in place of a markdown string. Using the examples above, the table_events docs can be included in the schema.yml file as shown below:

schema.yml
version: 2

models:
  - name: events
    description: '{{ doc("table_events") }}'

    columns:
      - name: event_id
        description: This is a unique identifier for the event
        tests:
            - unique
            - not_null

In the resulting documentation, '{{ doc("table_events") }}' will be expanded to the markdown defined in the table_events docs block.

Setting a custom overview​

Currently available for dbt Docs only.

The "overview" shown in the dbt Docs website can be overridden by supplying your own docs block called __overview__. By default, dbt supplies an overview with helpful information about the docs site itself. Depending on your needs, it may be a good idea to override this docs block with specific information about your company style guide, links to reports, or information about who to contact for help. To override the default overview, create a docs block that looks like this:

models/overview.md
{% docs __overview__ %}
# Monthly Recurring Revenue (MRR) playbook.
This dbt project is a worked example to demonstrate how to model subscription
revenue. **Check out the full write-up [here](https://blog.getdbt.com/modeling-subscription-revenue/),
as well as the repo for this project [here](https://github.com/dbt-labs/mrr-playbook/).**
...

{% enddocs %}

Custom project-level overviews​

Currently available for dbt Docs only.

You can set different overviews for each dbt project/package included in your documentation site by creating a docs block named __[project_name]__. For example, in order to define custom overview pages that appear when a viewer navigates inside the dbt_utils or snowplow package:

models/overview.md
{% docs __dbt_utils__ %}
# Utility macros
Our dbt project heavily uses this suite of utility macros, especially:
- `surrogate_key`
- `test_equality`
- `pivot`
{% enddocs %}

{% docs __snowplow__ %}
# Snowplow sessionization
Our organization uses this package of transformations to roll Snowplow events
up to page views and sessions.
{% enddocs %}

Use dbt Explorer for a richer documentation experience and more interactive experience for understanding your project's resources and lineage. Available on Team or Enterprise plans.

For additional details on how to explore your lineage and navigate your resources, refer to dbt Explorer.

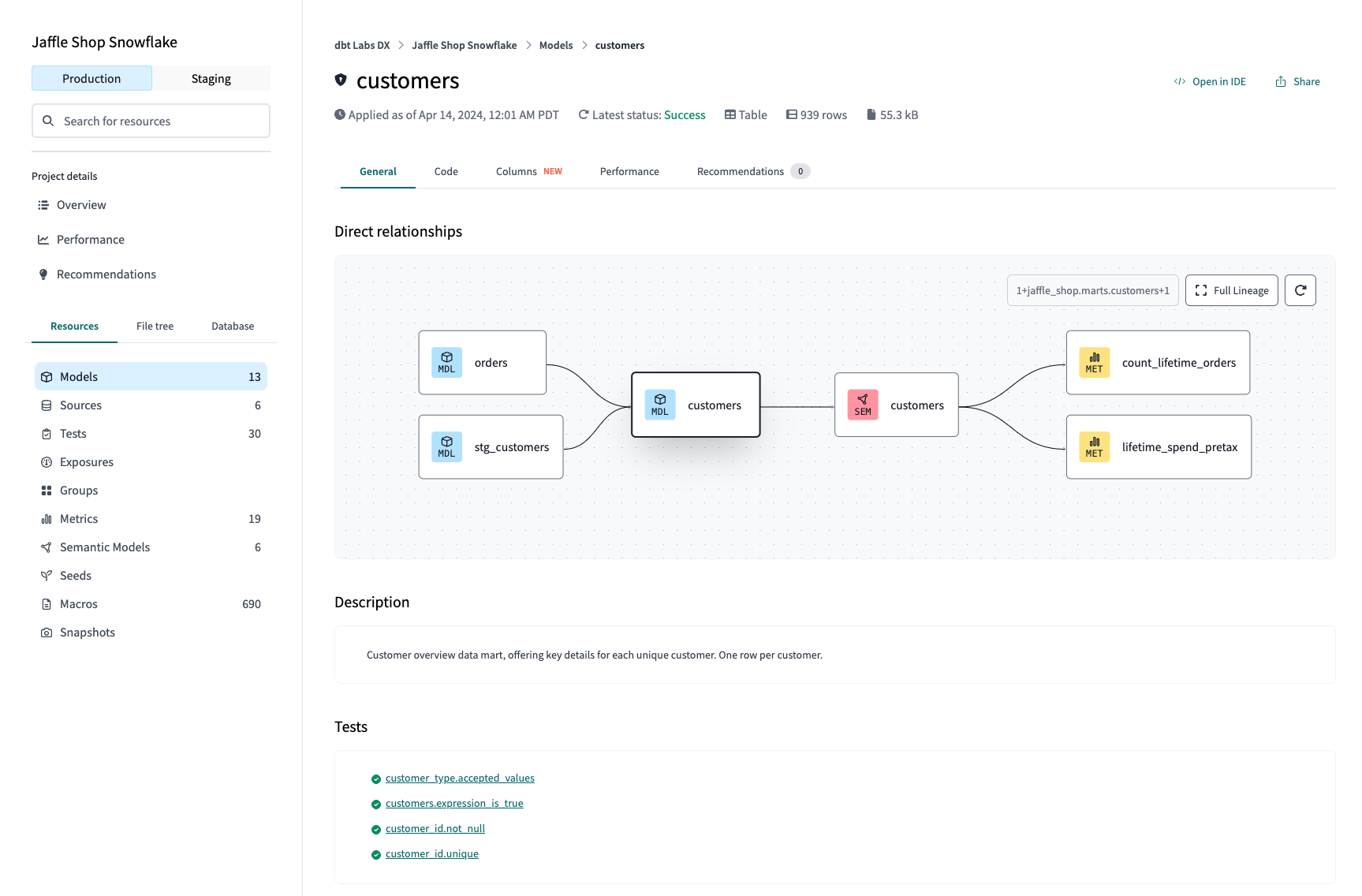

Example of resource detailsExample of resource details
 For dbt Docs

Deploying the documentation site​

With dbt Cloud, use dbt Explorer automatically retrieves the metadata updates after each job run in the production or staging deployment environment so it always has the latest results for your project — meaning it's always automatically updated after each job run.

Security

The dbt docs serve command is only intended for local/development hosting of the documentation site. Please use one of the methods listed below (or similar) to ensure that your documentation site is hosted securely!

For dbt Docs users​

dbt's documentation website was built to make it easy to host on the web. The site is "static,” meaning you don't need any "dynamic" servers to serve the docs. You can host your documentation in several ways:
